HP Multi Jet Fusion (MJF)

FDM PC-ISO

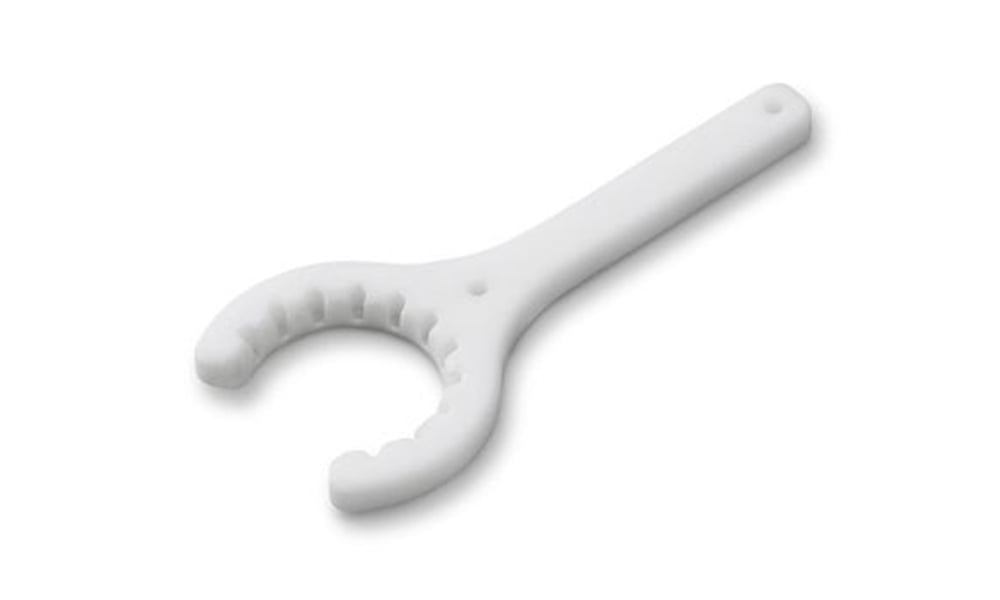

FDM PC-ISO: Biocompatible Thermoplastic for Medical Use

PC-ISO (polycarbonate-ISO), an industrial thermoplastic, which in its raw state, is biocompatible (ISO 10993 USP Class VI)* and can be gamma or EtO sterilized. PC-ISO is commonly used in food and drug packaging and medical device manufacturing because of the material’s strength, heat resistance  and medical compatibility.

At a Glance
Strength
Strong & Durable
Flexibility
Available in white
Temperature Resistance
Biocompatible
Dimensionally stable

Advantages & Uses

  • Gamma radiation or ethylene oxide (EtO) sterilization
  • Superior mechanical properties
  • Accurate, reliable functional testing
  • Tooling, functional prototypes and production parts in caustic or high-heat environments

PARAMETERS
FDM PC-ISO
1 Mechanical Properties
Tensile strength Modulus of elasticity Elongation at break Flexural strength (@ 5%) Flexural modulus Izod Notched Impact
42(ZX) - 57(XZ) MPa (6,100(ZX) - 8,300(XZ) psi) 1,958(ZX) - 1,944(XZ) MPa (284,000(ZX) - 282,000(XZ) psi) 2.5(ZX) - 4.8(XZ) % 68(ZX) - 89(XZ) MPa (9,900(ZX) - 13,000(XZ) psi) 1,800(ZX) - 2,006(XZ) MPa (261,000(ZX) - 291,000(XZ) psi) 28(ZX) J/m , 73(XZ) J/m
2 Thermal Properties
HDT
138 °C (66 psi) 280 °F (66 psi) 127 °C (264 psi) 261 °F (264 psi)
3 Electrical Properties
Volume Resistivity
6.0x10^13 - 2.0x10^14 Ω/cm

Other 3D Printing Materials

FDM ABS-ESD7

ABS thermoplastic with static dissipative properties for applications where a static charge can damage products.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
Electronics Manufacturers - Essex UK

FDM ABS-M30

Ideal material for conceptual modelling, functional prototyping, manufacturing tools and end-use-parts.
Appearance
Various
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM ABS M30 for Conceptual Modelling

FDM ASA

Now you can build consistently high-quality parts, with exceptional UV stability and the best aesthetics of any FDM thermoplastic.
Appearance
Various
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM 3D Printing Service UK

FDM PC-ISO

PC-ISO is an industrial thermoplastic, which in its raw state, is bio-compatible (ISO 10993/USP Class VI) and can be gamma or EtO sterilized.
Appearance
White
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM PC-ISO

FDM ULTEM 1010

Manufacture out-of-cabin aerospace components and under-the-hood automotive components.
Appearance
Tan
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM ULTEM 1010

FDM ULTEM 9085

ULTEM™ 9085 resin is a flame-retardant high-performance thermoplastic for digital manufacturing and rapid prototyping. It is ideal for the transportation industry due to its high strength-to-weight ratio and its FST (flame, smoke and toxicity) rating.
Appearance
Black or Tan
Toughness
Flexibility
Temperature Resistant
Technical Information
FDM Ultem 9085

HP MJF NYLON12

Produce strong, functional, detailed and complex parts at a fraction of the cost. PA 12 is engineered to produce final parts with dimensional accuracy. Robust thermoplastic for high-density parts with balanced property profiles and strong structures.
Appearance
Available in Grey or dyed Black
Toughness
Flexibility
Temperature Resistant
Technical Information
PRODUCTION 3D PRINTING

HP MJF TPU

TPU (thermoplastic polyurethane) is a high flexibility material which is a perfect choice for many applications. Resistant to many chemicals and with high resistant, this high performing material is ideal for seals, gaskets, housings and protection shrouds among other parts.
Appearance
Grey or black
Toughness
Flexibility
Temperature Resistant
Technical Information
HP MJF TPU

MICRO RG

A durable engineering material that may be used to print working end-of-life parts. It is biocompatible, with low water absorbtion, and may be used for a variety of applications such as electrical casings, medical devices, snap fittings, and functional prototypes.
Appearance
Transparent Yellow
Toughness
Flexibility
Temperature Resistant
Technical Information
Micro RG 4

MICRO HTL

High-performance material with great stiffness and heat resistance that can tolerate temperatures of up to 114°C. Utilised in load bearing applications, HTL delivers exceptional strength, stiffness, and heat resistance, offering up new choices in tooling, dies, and fixtures for precision components.
Appearance
Black or Transparent Yellow
Toughness
Flexibility
Temperature Resistant
Technical Information
Electronics Manufacturers

POLYJET AGILUS

Rubber-like Polyjet photopolymer simulates a wide variety of finished products, from soft-grip handles to footwear. Combine 30-95 ShoreA with rigid materials for seals, gaskets and soft-touch overmoulds.
Appearance
Black
Toughness
Flexibility
Temperature Resistant
Technical Information
Polyjet Agilus Seal & Gasket

POLYJET DIGITAL ABS

Digital ABS is designed to simulate standard ABS plastics by combining high-temperature resistance with toughness. Digital ABS2 delivers those properties plus superior rigidity and toughness in walls thinner than 1.2 mm.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
polyjet digital abs

POLYJET VERO

Combining dimensional stability and fine detail, Rigid Opaque materials are a key component in realistic prototypes that look like your end products, and fit-for-purpose tooling that moves you into production faster.
Appearance
Toughness
Flexibility
Temperature Resistant
Technical Information
polyjet vero prototypes uk

SLA CLEAR

Our clear SLA material is produced at high resolution in all axis giving an incomparable surface finish straight from the machine.
Appearance
Clear
Toughness
Flexibility
Temperature Resistant
Technical Information
3D printing service plastic prototypes

FDM: How does it work?

FDM’s history dates back to the late 1980s when Scott Crump invented the technology. Crump, inspired by a glue gun’s mechanism, developed the first FDM machine to create a toy frog for his daughter. Recognizing its potential, he co-founded Stratasys in 1989, and the company introduced FDM technology to the market. Since then, FDM has evolved, with advancements in materials, printer designs, and applications, playing a pivotal role in shaping the landscape of 3D printing.

Fused Deposition Modelling (FDM) is an additive manufacturing process that constructs objects layer by layer using heated thermoplastic materials. A heated nozzle extrudes melted thermoplastic filament, which quickly solidifies upon deposition. The build platform descends after each layer, gradually building the object from the bottom up. While FDM excels in accessibility and versatility, resulting in applications like prototyping and functional parts, it can display visible layer lines and intricate detail limitations due to its layer-by-layer approach.

FDM technology uses a wide material range like PLA, ABS, PETG, PC and more. These materials offer distinct properties such as strength, flexibility, and heat resistance. Additionally, specialized variants include composite filaments infused with materials like carbon fibre or metal, enhancing object strength and functionality.

Contact us now to help you get started on your 3D Printing project using FDM PC-ISO
